Air Bubble Film Machine

Machine Features

Information

With high output and low products weight to save raw material cost, weight can be from 30 GSM to 300 GSM and the weight of each layer can be adjusted. The both mono layer or co-extrusion layer are available produced by our machine, co-extrusion for nylon air bubble film will be more strength. air bubble film can be double side in-line lamination with other material to become 5 layers, or dual forming station for 11 layer.

It is fully automatic control by screen touch panel, and can choice option to include perforation device, lamination device and unloading air bubble film roll parts..etc.

Application could be air bubble film package, with aluminum foil laminated is for insulation material, higher weight air bubble film laminated with woven fabric can be for solar pool cover… with foam, kraft paper..etc. for more applications.

Successful air bubble film machine installed countries: Asia, North America, Australia, south America, Europe.

Extruder

The extruder is specially designed for good melting and stable extrusion. Both new and recycled pellets can be applied. It's also can be multi-layers co-extrusion for reinforcing air bubble film strength.

In Line Recycling System

In line recycling system can return the trimmed edge to the extruder for reusing, without any wasting on the material.

Forming Roller

  • The forming rollers are equipped with water cooling system. Two suction types, drill the hole and insert slice are available to choose from.
  • Just take 30~60 minutes to change the forming rollers, and then you can easily to make different size of air bubble film.

Winder

The turret winder is equipped with the auto-
splicing system and stable tension control, provided accuracy length, non-waste winding technology. The turret winder can use on tubular film or paper core.

YSW-D co-extrusion

YSW-T 5 layer air bubble film layout

Auxiliary Equipment

Perforation Machine (YSW-DC)

Perforation Machine (YSW-DC)

  • For PP/PE material.
  • Accuracy perforation depend on operator require.
Bubble Envelope Making Machine (YSW-KA-LM)

Bubble Envelope Making Machine (YSW-KA-LM)

  • All in one design, from laminator to envelope making machine, can produce bubble wrap envelopes.
  • Paper or PE film laminated with air bubble film and then run through a triangle stand to make two-sided or three-sided sealing envelopes.
Vertical Cutting Machine (YSW-VC)

Vertical Cutting Machine (YSW-VC)

  • For PP/PE material.
  • The machine can efficiently slit several rolls of film in a short time.
Cutting Machine (YSW-CP)

Cutting Machine (YSW-CP)

  • For PP/PE material.
  • This machine provides slitting and cutting functions.
  • Finished product can be collected by row , and unload it easier by operator.

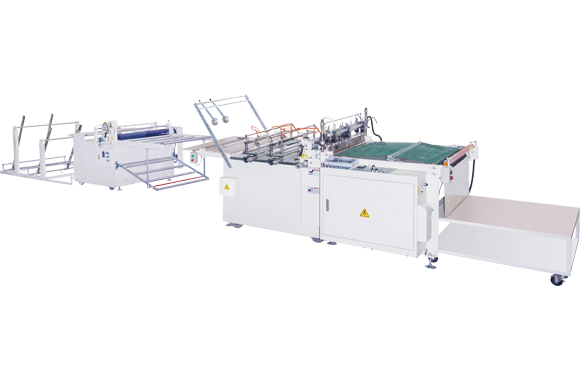

Three Sealing Bag Making Machine (YSW-EM-3)

Three Sealing Bag Making Machine (YSW-EM-3)

  • For PP/PE material.
  • Automatic folding, make two sides or three sides sealing bags.
  • Servo driving motor system.
  • Auto stacking and delivery system.
Two Sealing Bag Making Machine (YSW-EM-2)

Two Sealing Bag Making Machine (YSW-EM-2)

  • For PP/PE material.
  • Automatic folding, make two sides or three sides sealing bags.
  • Servo driving motor system.
  • Auto stacking and delivery system.
Add to
Inquiry form
Specifications
Model YSW-S YSW-T YSW-D
Resin PP, PE, Additive
Products Weight 30 ~ 400 GSM
Extrusion Capacity 50 ~ 500 kg/hr (Single extruder)
Product Width 1200 MM ~ 3500 MM
Optional Accessories Unwinder, Forming Roller, Mixer, Slitter, Chiller, Recycler Device, Perforation Device, Hydraulic Screen Changer, Auto Dosing Device
