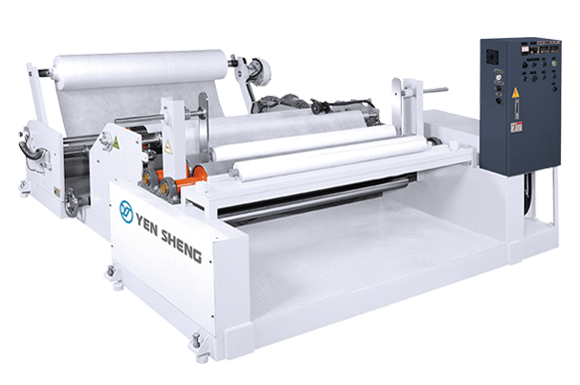

To sandwich laminate two substrates material together, one substrate material single side coating, one substrate with double side coating, or strip(section) lamination for two substrates to be tear off easily for further recycle, the thickness of lamination can be 6 micron to 60 micron, working width can be 2mm to 6000mm, with higher extrusion capacity for higher running speed, the maximum machine speed can catch 200m/min.

It is fully automatic control by screen touch panel, and can upgrade to include mirror or embossing surface cooling roller, turn bar, recycling system, cooling system, primer coater, surface treatment device…etc.

Application can be woven sack, cement bag, onion bag, paper cup / milk box, non-woven fabric..etc.

Successful lamination machine installed countries: Taiwan, Indonesia, Philippines, China, Morocco, Argentina, Thailand, Paraguay, mexico, Pakistan, Korea, South Africa, Ecuador, Chile, Bolivia, Tunisia, Brazil, USA, Egypt, Bangladesh, Myanmar, Russia, Turkey, Costa Rica, Vietnam, Algeria, Nigeria, Ivory Coast, India, Uzbekistan, Sudan, Kazakh, Finland, Zimbabwe, Morocco, El Salvado, Honduras, Uruguay, Tanzania

• The extruder is specially designed for good melting and stable extrusion. It is available to add masterbatch or other functional additivities.
• The working width of T-die can adjustment during machine production.
• No need to adjust the die lip can change the coating thickness.
• Film edge are stable flow rate and can control thickness.

This device offers stable winding tension, the finished winded roll could be loaded on floor for a long time, and keeping round winding shape without deformation. Also the roll can be changed without stopping the machine.

Clean and pre-treatment surface of material to increase the adhesion force on the surface of material before lamination.

Tubular woven fabric through turn bar only by one T-Die to do both sides lamination at the same time.

The special design for BOPP film or Aluminum foil for sandwich lamination process.
